Roots Blower

Roots blower

A roots blower compressor is a positive displacement rotary lobe pump that operates by pumping a fluid with a pair of meshing lobes, not unlike a set of stretched timing gears.`

The fluid is then trapped in pockets surrounding the lobes and carried from the intake side to the exhaust.

Why is that the rotary lobe blower called a “Roots Blower”?

The positive rotary lobe blower was designed in the 1850s by the Francis and Philander Roots brothers. it had been later patented in 1860 by the brothers and therefore the Roots name became the name of the planning.

Identification of different names of root blowers

Roots blower is also known by other names like air blower, twin lobe compressor, twin lobe blower, air compressor, industrial blower, agriculture blower, etc…

Roots blower working principle

The roots blower working principle consists of the following: the process starts with air flowing from the inlet port into the element chamber.

The timed rotation of the rotors against the wall of the chamber creates a so-called “airflow direction”. At this point, there is still atmospheric pressure in these chambers.

As soon as the first lobe passes the opening to the pressure side, the system pressure is adjusted. This is called isochoric compression.

The rotors seal each other off to the inside, roots blower working principle which prevents a change of pressure.

How does a “Roots Blower” operate?

A Roots blower operates using the isochoric compression principle, also known as external compression. The pressure increase is achieved by intermittently transporting a gaseous medium (e.g. atmospheric air) into a system.

By forcing the medium from atmospheric conditions into a system with a given resistance (e.g. a water column, distribution network), the relevant pressure increase is achieved.

The roots blower will operate at a controlled output level to overcome this resistance.

What is the JD VACUUM SERVICE “Twin lobe Blower” series composed of?

The JD VACUUM SERVICE “Twin lobe Blower”; called JDVC, is composed of three conjugate lobe-shaped rotors that rotate inside a pre-machined chamber.

The chamber is sealed by the rotating rotors, and the rotors are synchronized by means of a timing 1:1 gear ratio, positioned at the end of the shafts.

all Bearings are positioned externally to the compression chamber with an oil-lubricated system. The driveshafts have labyrinth-style oil seals, so-called because of the labyrinth of grooves that the oil must pass through. The splash guard lubrication system uses a fine mist of oil for lubrication.

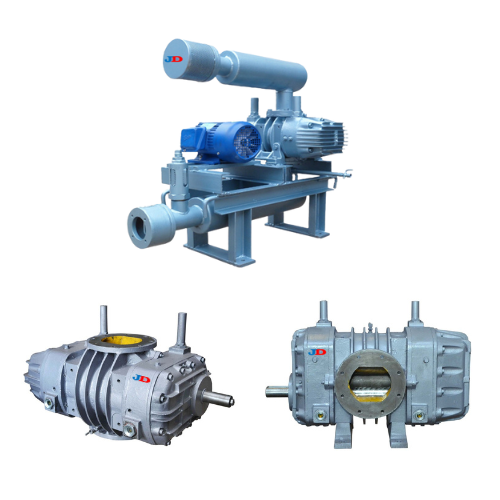

Roots blower manufacturers in India

Roots blower manufacturers in india

Root air blower manufacturers -twin lobe blower – JDGR/JDWR SERIES

JD VACUUM SERVICE twin lobe blower manufacturers suppliers in India. We are into full-fledged manufacturing of a good range of Twin Lobe blower Exhausters.

Over a period of time, we have developed a series of Twin Lobe blowers/twin lobe compressors having unmatched quality & performance.

These Twin Lobe blowers are specially designed for continuous applications, demanding constant flow at varying discharge pressures, such as in E.T.P., Pneumatic Conveying, etc.

Roots Blower price in India

This Twin Lobe Blower Pressure is Air Cooled Machines and is capable to develop pressure up to 1 kg./Cm2 & for vacuum duty up to 0.6 kg/cm2. Two-stage machines are often offered for pressure up to 2.2 kg/cm2.

The twin lobe Blower is being manufactured in 10 different models to cover the suction capacity ranging from 70 M3/hr to 7000 M3/hr.

Twin lobe blower for aquaculture As per the required suction capacity and pressure requirement, a suitable model of the Roots Blower price in India can be offered.

roots blower price in india

These Air Blowers compressors are designed in such a way that the same can have vertical or horizontal airflow. Further, the twin lobe blower working with its standard accessories is being supplied together compact unit which makes it very easy to put in.

It is also available as a bare machine for replacement. Roots blower working principle pdf

These twin lobe Blowers are tested for performance as per BS-1571 Part II to work out capacity, pressure, and power consumption.

Stringent internal control tests are administered at each stage of production and every unit is given a test run lasting several hours under increased load.
