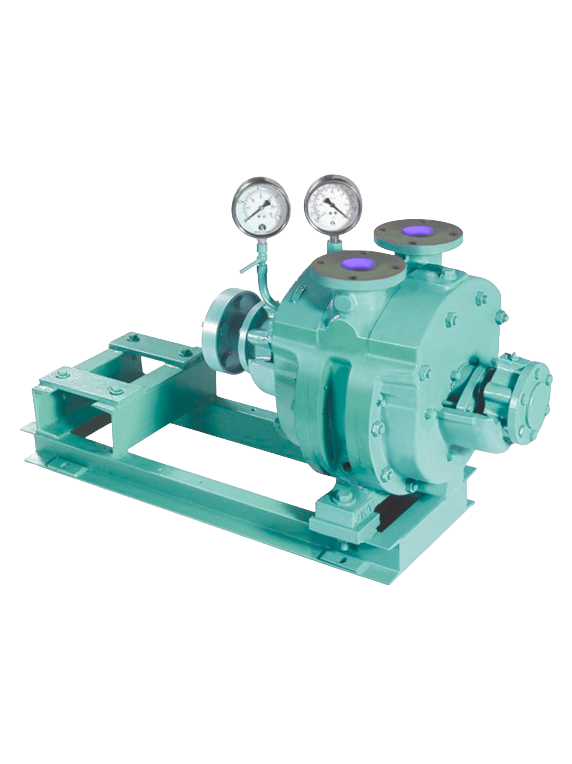

Single Stage Liquid Ring Vacuum Pumps for Pharma Industries
An improved concept in Liquid Ring Technology was developed by highly technical and experienced engineers solely engaged in manufacturing Vacuum Pumps, labeled "JD VACUUM SERVICE." This pump develops a vacuum of 710 mm of Hg when sealing water at 30 Degrees C.
Minimum Order Quantity | 1 Piece |
Type | DIRECT COUPLE |
Number Of Stages | Single stage |
Phase | THREE PHASE |
Mounting | Floor / Permanent |
Motor Speed | 2880 RPM |
Capacity | 25 TO 1725 M3/HR |
Voltage | 415 |
Max Vacuum | 710 MM/HG |
Country of Origin | Made in India |
Description
Single Stage Liquid Ring Vacuum Pumps for Pharma Industries
We are among the top manufacturers of Single Stage Liquid Ring Vacuum Pumps for Pharma Industries which exhibit our excellency in designing and manufacturing world-class vacuum pumps. The single-stage vacuum pump is a multi-purpose device that can be used not only as a vacuum pump but can also be easily used in the compressor duty with small installation modifications. Thus, these devices allow flexible usage, and the liquid ring compressors are capable of developing g pressure up to 1.5kg/cm2g.
We also offer custom-designed vacuum pumps to ideally meet your industrial requirements. These pumps are specially designed to easily handle dust-laden and aggressive gases while ensuring optimum performance.
Key Features
These vacuum pumps are built with durable materials, ensuring longevity and minimal maintenance. Their unique design allows them to operate quietly while effectively minimizing environmental impact, making them ideal for sensitive pharmaceutical applications.
Applications in Pharma
pharmaceutical sector, single-stage liquid ring vacuum pumps are used for tasks such as drying and distillation processes. Their efficiency supports higher production rates, ensuring that pharmaceutical companies maintain quality standards. Investing in these pumps guarantees a trustworthy and efficient solution for your vacuum needs.
Material Of Construction:
- Cast Iron
- Partial SS304 with cladding
- Complete SS304
- Partial SS316 with cladding
- Complete SS316
Technical Specifications
- Maximum vacuum – 710 mm of Hg
- Power – 3 – 120 HP
- Capacity – 49 m3 hr – 2700 m3 hr
Additional Information:
- Delivery Time: 4 DAYS
- Packaging Details: WOODEN BOX
TECHNICAL SPECIFICATION
Model | Power | Capacity | max. Vacuum | Water Sealing |
---|---|---|---|---|
JDWV 1 | 3 HP/2880RPM | 30 M3/HR | 710 MM OF HG | 5 LPM |
JDWV 2 | 5 HP/2880RPM | 81 M3/HR | 710 MM OF HG | 9 LPM |
JDWV 3 | 7.5 HP/2880RPM | 125 M3/HR | 710 MM OF HG | 13 LPM |
JDWV 4 | 7.5 HP/1440RPM | 175 M3/HR | 710 MM OF HG | 16 LPM |
JDWV 5 | 10 HP/1440RPM | 220 M3/HR | 710 MM OF HG | 19 LPM |
JDWV 6 | 15 HP/1440RPM | 330 M3/HR | 710 MM OF HG | 24 LPM |
JDWV 7 | 20 HP/1440RPM | 440 M3/HR | 710 MM OF HG | 26 LPM |
JDWV 8 | 30 HP/920RPM | 725 M3/HR | 710 MM OF HG | 36 LPM |
JDWV 9 | 40 HP/920RPM | 1080 M3/HR | 710 MM OF HG | 40 LPM |
JDWV 10 | 50 HP/920RPM | 1500 M3/HR | 710 MM OF HG | 42 LPM |
