3 HP Water Ring Vacuum Pump Best price

3 HP Water Ring Vacuum Pump Best price

3 HP WATER RING VACUUM PUMP - Max Flow Rate: 50 M3/hr. Motor: 3 HP/2850 rpm, Vacuum: 710 MM/HG, Material: C.I, PSS 304, PSS 316, CSS 304, CSS 316. Working Temperature: degrees Celsius. JD VACUUM SERVICE is the best Water Ring Vacuum Pump manufacturing company.

lass="yoast-text-mark">lass="yoast-text-mark">lass="wp-block-table is-style-stripes">
SUCTION CAPACITY 50 M3/HR
RECOMMENDED MOTOR 3 HP
WATER CONSUMPTION 7 LPM
SPEED 2850 RPM
TYPE JDWV JDWV-1

Description

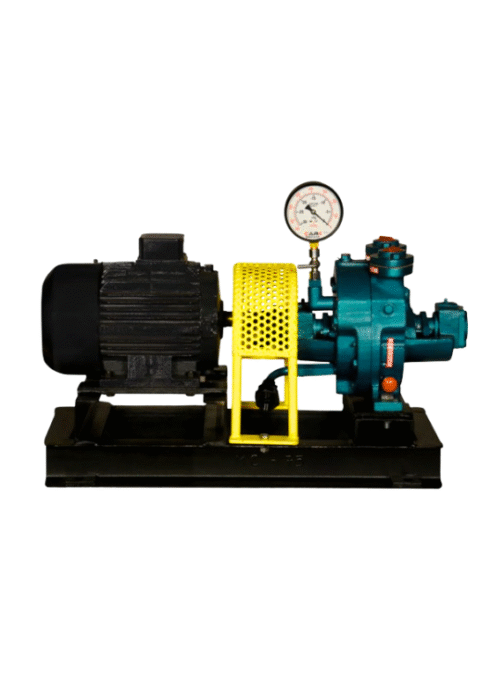

JD Vacuum Service introduces the 3 HP Water Ring Vacuum Pump. It is also known as a Liquid Ring Pump. This product is manufactured using good quality components and modern technology. We have also followed international quality norms. Our product, the 3 HP Water Ring Vacuum Pump, is well appreciated by our valued customers. We provide our products at economical prices.

A 3 HP vacuum pump (three-phase pump) is often used to prime larger pumps. As the name suggests, it is also used to create a ‘vacuum‘ by enabling the evacuation of air and is therefore widely used for applications such as priming of large pumps, deaeration of suction pipes and chambers, twist drilling machines, and removal of water from pulp.

Layer, labeling, bottle filling, de-vaporizing, drying, evaporation, distillation, filtration, sterilization, condensation, degasification, sucking gas, and extrusion machines often require a 3 HP Liquid Ring Vacuum Pumps.

5 hp Vacuum Pump / Liquid Vacuum Ring Pump

A liquid-ring pump is a rotating positive-displacement pump.

They are commonly used as vacuum pumps but can also be used as gas compressors. Liquid-ring pumps function similarly to rotary vane pumps, the difference being that the vanes are integral to the rotor and churn the rotating ring of liquid to form a compression-chamber seal.

They are an inherently low-friction design, with the rotor being the only moving part. Sliding friction is limited to shaft seals. Liquid-ring pumps, such as the 3 HP water ring Vacuum Pump, are usually driven by an induction motor.

Product Features

  • Available with either single-stage or two-stage Liquid ring Vacuum Pumps.
  • Designed to be environmentally friendly and eliminate pollution.
  • Reduced service Liquid consumption.
  • The completed package design includes all necessary components.
  • Available in a wide choice of materials.
  • Control Valve and instrumentation are also available for fully automatic operation
  • Custom design according to customers’ specifications is our specialty.
  • Electrical Control Panel, including skid wiring available as an option.
  • All pumps include mechanical Shaft Seals as standard practice.
  • Available with either shell & tube or plate type heat exchanger for maximum heat transfer efficiecy and minimum cooling water requirements

Applications

  • Vacuum filtration
  • Extracting moisture
  • Removal of water from pulp during paper
  • Paper
  • Chemicals
  • Mining
  • Fertilizer
  • Petrochemical
  • Petroleum Industry
  • Textile Industry
  • Metalwork Industry
  • Oil And Gas
  • General Manufacturing
  • Automotive Industry
  • Vapor Extraction
  • Power Generation Equipment
  • Food Processing
  • Seawater Deaeration
  • Brick Extrusion
